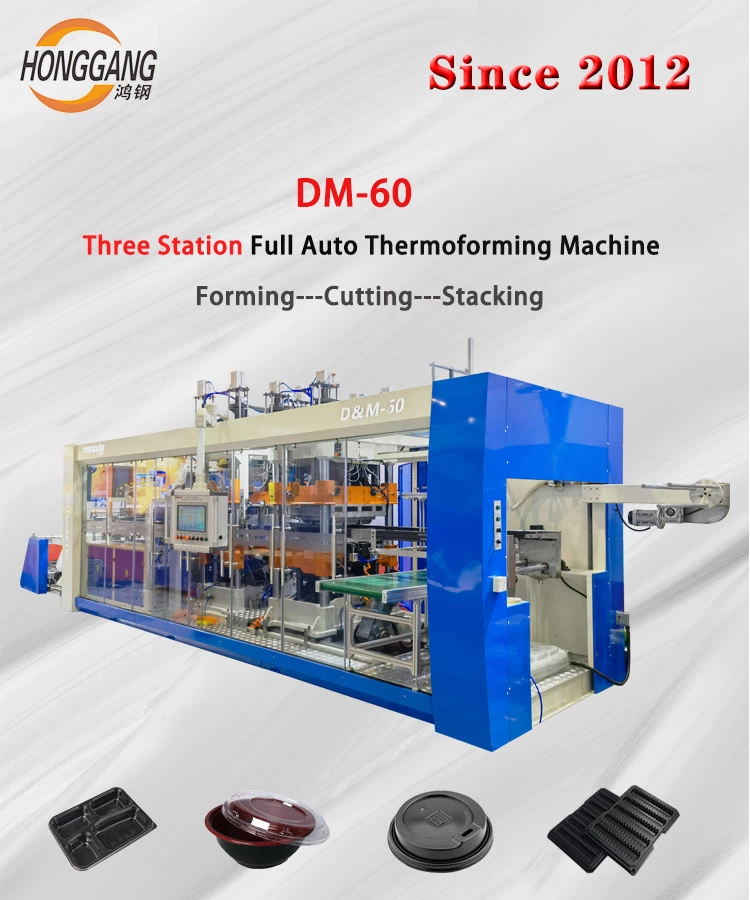

DM 60 Three Station Pp Pet Food Tray Container Thermoforming machine
The DM60 three stations auto pp pet plastic food tray container thermoforming Machine is a high-efficiency and fully automatic plastic sheet pneumatic thermoforming machine that is developed by digesting, absorbing, and innovating similar advanced models at home and abroad.
- Model number
- DM-60
- Weight
- 14 T
- Dimensions
- 12m*2.8m*2.6m
- Suitable material
- PP, PS, PET, PVC, OPS, degradable materials, PLA, etc.
- Maximum forming area
- Width 780*Length 600mm
- Work efficiency
- 40 cycles/minute (depending on material thickness)
- Warranty
- 1 year
Product Description
The DM60 three stations auto pp pet plastic food tray container thermoforming Machine is a high-efficiency and fully automatic plastic sheet pneumatic thermoforming machine that is developed by digesting, absorbing, and innovating similar advanced models at home and abroad.
Feature
1. The station structure is changed to a servo direct-punching structure, which improves efficiency. The old-style cutting needs to be clamped and pressurized before cutting. The new style is servo direct cutting.
2. The new station connecting rods are all doubled.
3. The temperature control system is upgraded, each heater of the new intelligent temperature control system can be individually controlled, the temperature control module imported from Japan, the temperature accuracy is 0.5°
About Us
this is forming+cutting parts made in Honggang factory then deliver to our another two thermoforming machine factories （in Dongguan city）
Our advantages:
1. The original Food Tray Thermoforming Machine manufacturer
2. Honggang specializes in forming+ cutting parts for 29 years
3. Honggang provides forming+cutting parts for their 3 stations machine for other vacuum forming manufacturers
| Model | HG-DM60 |
| Machine Type | Plastic Food Container Vacuum Forming Machinery |
| Applicable raw materials |
PP, PS, PET, PVC, OPS, degradable materials, PLA, etc. |
| Forming method | Positive and negative pressure forming |
| The maximum forming mold area | Width 780×Length 600mm |
| Minimum molding die area | 420×300mm |
| Air pressure | 7 Bar |
| Travel depth | 150 mm |
| Formed depth | 130 mm |
| Maximum sheet width | 450-810mm |
| Applicable sheet thickness | 0.15-2.0mm |
| Stacking mechanism | Hanging point stacking |
| Rated power of the whole machine | 120 KW |
| Heating power | 25-55kw |
|
Weight |
14 T |
| Dimension | 12m*2.8m*2.6m |
| Power access | 380V/50HZ (three-phase five-wire) |
